Thermal-insulation Bags Manufacturers, Suppliers, Factory

1. Brief Introduction

(1) Product Description

Thermal-insulation bags are multi-layered pouches used by food delivery platforms cold-chain distributors and grocery e-commerce sellers to protect hot meals frozen goods and fresh produce during transit
Reliable performance depends on wall thickness reflective film quality heat-seal integrity and pack-out efficiency rather than unit price alone
Custom sizes printing and packaging design are available to match different brand and use case requirements

(2) Applicable Scenarios and Target Audience

Channel Type	Applicable Scenario	Target Audience
Food Delivery	Hot meal transport on short to medium delivery routes	Restaurants and delivery platforms
Cold Chain and Grocery	Frozen meat and fresh produce shipment	E-commerce grocers and perishables distributors
Meal Kit and Retail	Meal-kit pack-out and retail shelf use	Meal-prep services and retailers
Wholesale and Private Label	Bulk sourcing with custom branding	Distributors and wholesale buyers

(3) Construction and Format

Multi-layer build combines pearl cotton insulating foam and a reflective aluminum film in a composite profile of about 3mm
Standard format of 7.9 x 9.8 inches (20 x 25cm) suits a wide range of daily commercial and retail applications
Integrated self-sealing tape removes the need for extra adhesives and speeds up packing during high-volume fulfillment

(4) Sourcing and Quality Assurance

Confirm the pack-out structure covering units per inner pack inner packs per carton and cartons per pallet before placing a bulk order
Clarify freight terms and transit time by shipping mode since these affect total landed cost beyond the quoted unit price
Three-stage quality control covers raw material intake mid-production stitching and final leak testing on every order
Food-grade certification documents are available together with private labeling and volume-tiered pricing

(5) Leak-proof Performance and Test Data

Samples are checked against dimension and thickness tolerance and inspected for a reflective outer film white inner lining and uniform heat-sealed edges
Self-sealing tape and heat seals are tested by filling the pouch with water sealing it and inverting it for 15 minutes to check for leakage
Insulation test reports should state the ambient testing temperature payload weight and test duration so preservation claims can be verified

2. Basic Specifications

The standard pouch combines pearl cotton insulating foam and a reflective aluminum film into a profile of about 3mm (0.12 inch) measuring 7.9 x 9.8 inches (20 x 25cm), with a tolerance of ±5mm on size and ±0.2mm on thickness. Larger and smaller formats are available on request and each pouch closes with integrated self-sealing tape for faster pack-out. Since pack-out efficiency affects freight cost buyers should confirm units per inner pack inner packs per carton and cartons per pallet before placing a bulk order.

Item	Specification	Remarks
Size (L x W)	7.9 x 9.8 in (20 x 25cm) standard, tolerance ±5mm 6 x 6 in to 11 x 15 in common range for smaller and larger formats	Custom sizes available
Wall Thickness	0.12 in (3mm) standard composite thickness, tolerance ±0.2mm	Thickness customizable; heavier profile improves insulation duration
Film Structure	Reflective silver outer film with white inner lining	Custom colors and printing available
Closure	Integrated self-sealing tape	Removes need for extra adhesive during packing
Pack-out Structure	Units per inner pack, inner packs per carton and cartons per pallet confirmed per order	Packaging quantity adjustable by size and thickness for calculating volumetric weight

3. Material & Safety

The standard build uses three layers: a reflective silver outer film a pearl cotton insulating foam core and a white inner lining that contacts the payload. A lower-cost HDPE or PE liner is available for shorter routes with lighter insulation needs. Standard production uses virgin material with recycled content available on request. All materials are food-grade and BPA-free with FDA LFGB REACH and RoHS documentation available by market. Reusable and recyclable versions are standard while biodegradable or compostable liners are offered as a custom option.

Item	Specification	Remarks
Raw Material	Multi-layer composite of pearl cotton, insulating foam core and reflective aluminum film	Primary construction affecting insulation performance and cost
Alternate Liner	HDPE or PE liner options for lighter-duty applications	Lower-cost option for shorter transit routes
Recycled Content	Standard product uses virgin material; recycled content available on request	Confirm ratio and certification in advance
Eco Attribute	Reusable and washable; recyclable options available	Biodegradable or compostable liner options subject to confirmation
Note: All materials used are food-grade and BPA-free. Relevant compliance documentation such as FDA, LFGB, REACH and RoHS can be provided based on the target market. Biodegradable or compostable options are available on request.

4. Product Physical Properties

Test data is recorded under defined and reproducible conditions rather than open-ended preservation claims. Dimensions and wall thickness are checked against ±5mm and ±0.2mm tolerances. Insulation performance is measured at a fixed ambient temperature of 25°C with a defined payload such as a 500g gel pack over a stated duration so results can be compared across orders. Leak resistance of the self-sealing tape and heat-sealed edges is verified by filling a sealed pouch with water and inverting it for 15 minutes. Buyers should request certified reports stating these exact parameters.

Physical Properties (Factory Lab Test Records). Test data based on the standard 3mm composite construction (pearl cotton, insulating foam core and reflective aluminum film). Actual performance can be adjusted per customer requirements. Data for reference only; certified test reports available upon request.
Test Item	Test Condition	Result / Target	Remarks
Dimension Tolerance	20 x 25cm standard size	±5mm	Measured by sampling against quote
Wall Thickness Tolerance	3mm standard thickness	±0.2mm	Measured by sampling against quote
Insulation Performance	Ambient 25°C with 500g gel pack	Preservation duration as stated in test report	Payload and duration must be defined for a valid comparison
Seam and Tape Leak Resistance	Water-filled pouch sealed and inverted for 15 minutes	No moisture escape	Applies to self-sealing tape and heat-sealed edges

5. Materials and Safety Certifications

Item	Details
Key Attributes	BPA-Free/Food-Safe/Eco Attribute
Food-Grade Certification	FDA: FEI No. 3004496839 BRC-PM (Huakang BRC-PM Certificate): Certificate No. 0196051
Other Certifications	ISO 13485 — Medical Device Quality Management System ISO 9001 — General Quality Management System BSCI / SMETA / Sedex — Corporate Social Responsibility Audits (labor, environment, etc.)

6. Customization Capabilities

Item	Details
Printing	Logo + design printing supported; gravure 4-color printing process
Size Customization	Custom sizes available on request; MOQ to be discussed separately
Standard MOQ	3 tons
Custom MOQ	3 tons，plate/tooling fees: to be quoted separately
Sample Lead Time	14 business days; sample fee USD $300, refundable upon mass production order

7. Packaging & Logistics

Item	Details
Inner Packaging	Subject to specific packaging requirements
Outer Carton	Subject to specific packaging requirements
Trade Terms	FOB Port of Shanghai or Sihanoukville; T/T 30% deposit, balance against copy of B/L
Production Lead Time	45 days for first order; 30 days for subsequent orders

8. Quality Control - Combination of flowcharts and tables

Stage	Inspection Content
IQC	Plastic pellet strength, transparency, and food-grade compliance verification
IPQC	Dedicated QC inspectors stationed on the production floor with ongoing random inspections throughout the production process
OQC	Dimensions, weight, seal integrity, appearance, and packaging completeness
Customer Inspection	On-site inspection by customer or third-party testing agencies supported

9. After-Sales Service

Item	Details
Warranty Period	Quality claims accepted within 6 months of shipment (excluding damage caused by misuse or improper storage)
Claims Process	Provide photos + physical samples within 30 days of receipt; resolution provided within 7 business days
Resolution Options	Replacement / Refund / Discount credit; shipping responsibility negotiated based on circumstances (quality-related returns borne by supplier; non-quality-related returns borne by customer)

10. About Huayue Group

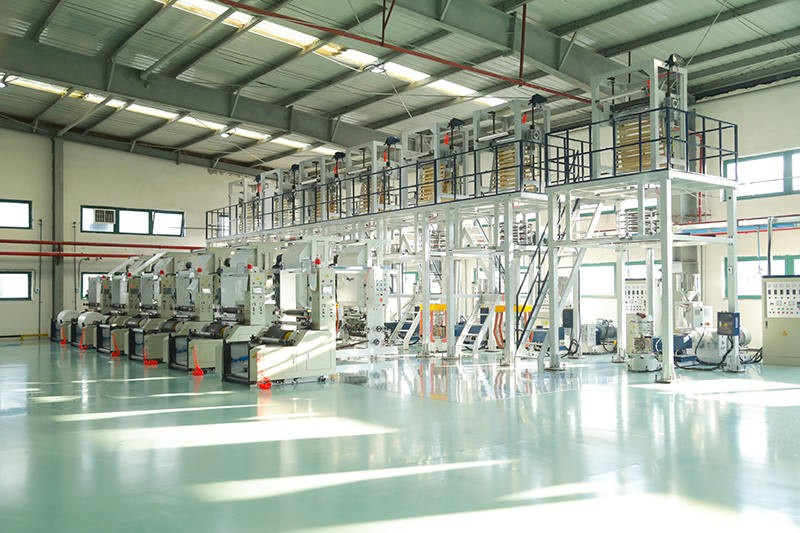

Huayue Group has been deeply rooted in the plastic packaging industry for over 30 years. The company operates the largest plastic packaging production base in Cambodia, with an annual capacity of 120,000 metric tons (equivalent to 10,000 metric tons per month). The company holds multiple international management system certifications (including ISO 9001, BSCI, Sedex, etc.) and produces products that comply with food-contact material standards such as FDA, LFGB, and EU 10/2011.

Over 70% of Huayue's products are exported to European and North American markets, where we have established long-term, stable partnerships with many leading Western retailers. We support full customization in sizes, thicknesses, multi-color printing, and eco-friendly materials (compostable/biodegradable). Backed by 30 years of manufacturing experience, large-scale production capacity, and rigorous quality control, we provide reliable packaging solutions for food companies worldwide.
