Inflatable Air Column Bag, Air Column Packaging Manufacturers

1. Brief Introduction

(1) Product Description

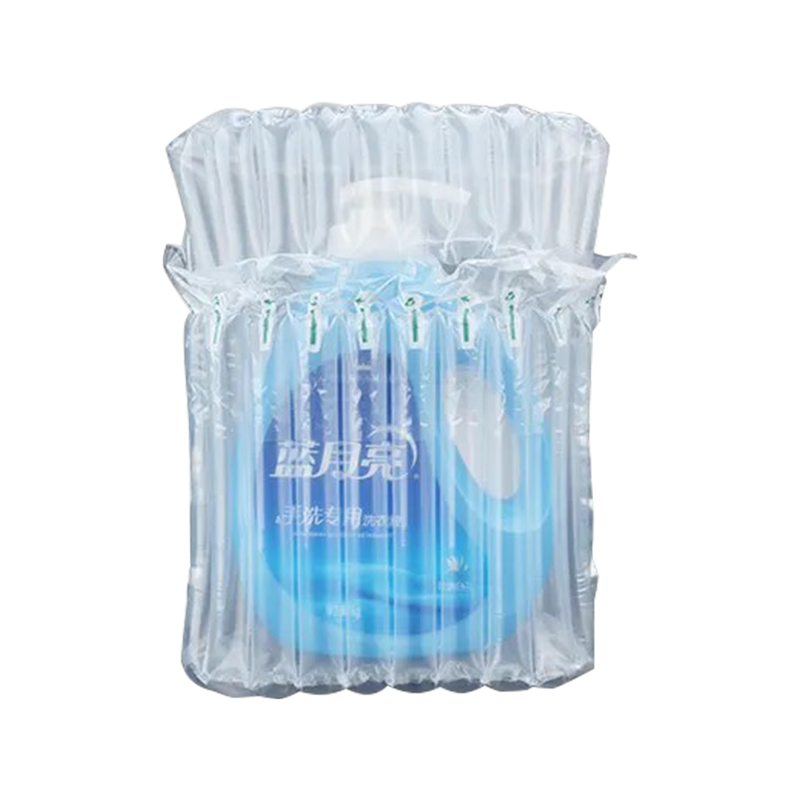

Air inflatable bags are protective packaging cushions formed from durable film into connected air columns or independent air chambers and inflated on demand right before packing
Each column or chamber holds air independently so a single puncture will not collapse the whole cushion
Shipped uninflated as flat rolls to save storage space reduce shipping weight and cut material waste compared with foam or paper filling

(2) Applicable Scenarios and Target Audience

Channel Type	Applicable Scenario	Target Audience
Glassware and Wine	Bottle and stemware protection at the packing station	Wineries glassware brands and retailers
Electronics	Pre-insertion packing on the production line	Electronics manufacturers and logistics providers
Cosmetics	Kitting station packing for multi-item sets	Cosmetics brands and contract packagers

(3) Column and Chamber Layout

Column width and layout are matched to each product's dimensions and weight

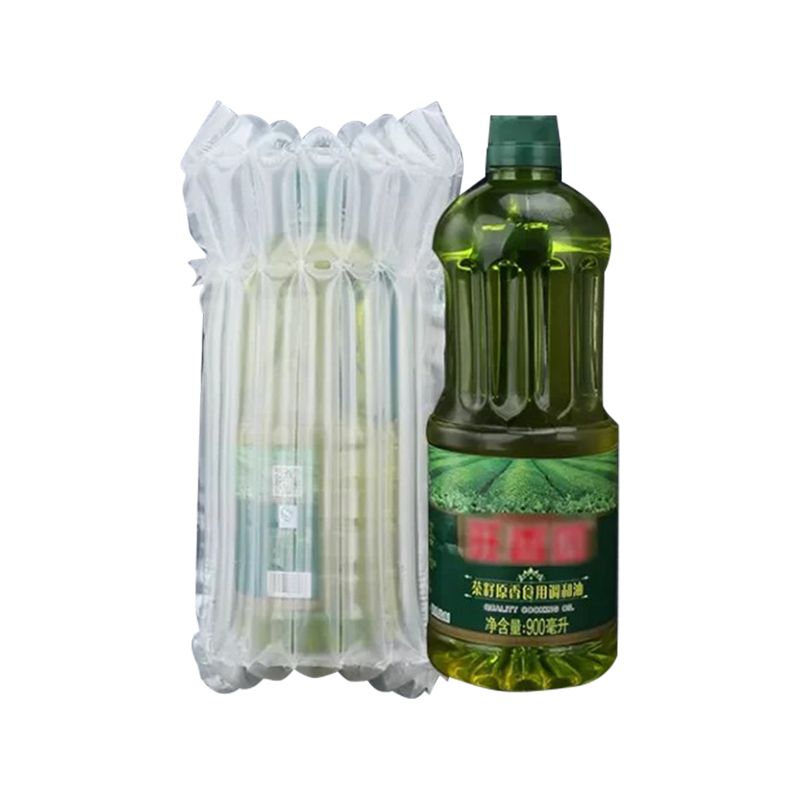

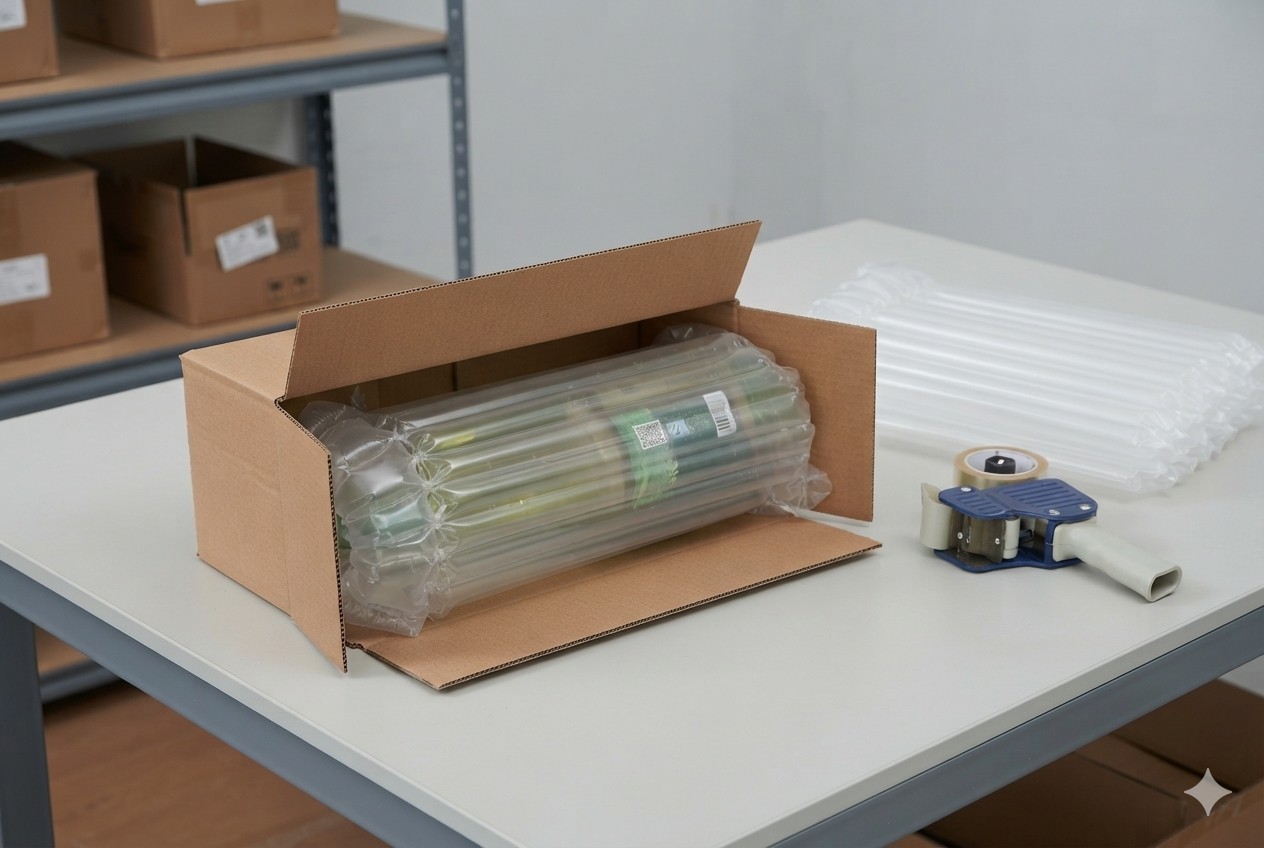

Wine bottles use a wrap-around sleeve while stemware uses a taller narrower column
Heavier items such as monitors need denser columns to prevent settling
Multi-chamber layouts with offshoot chambers protect irregular caps

(4) Inflation and Sealing

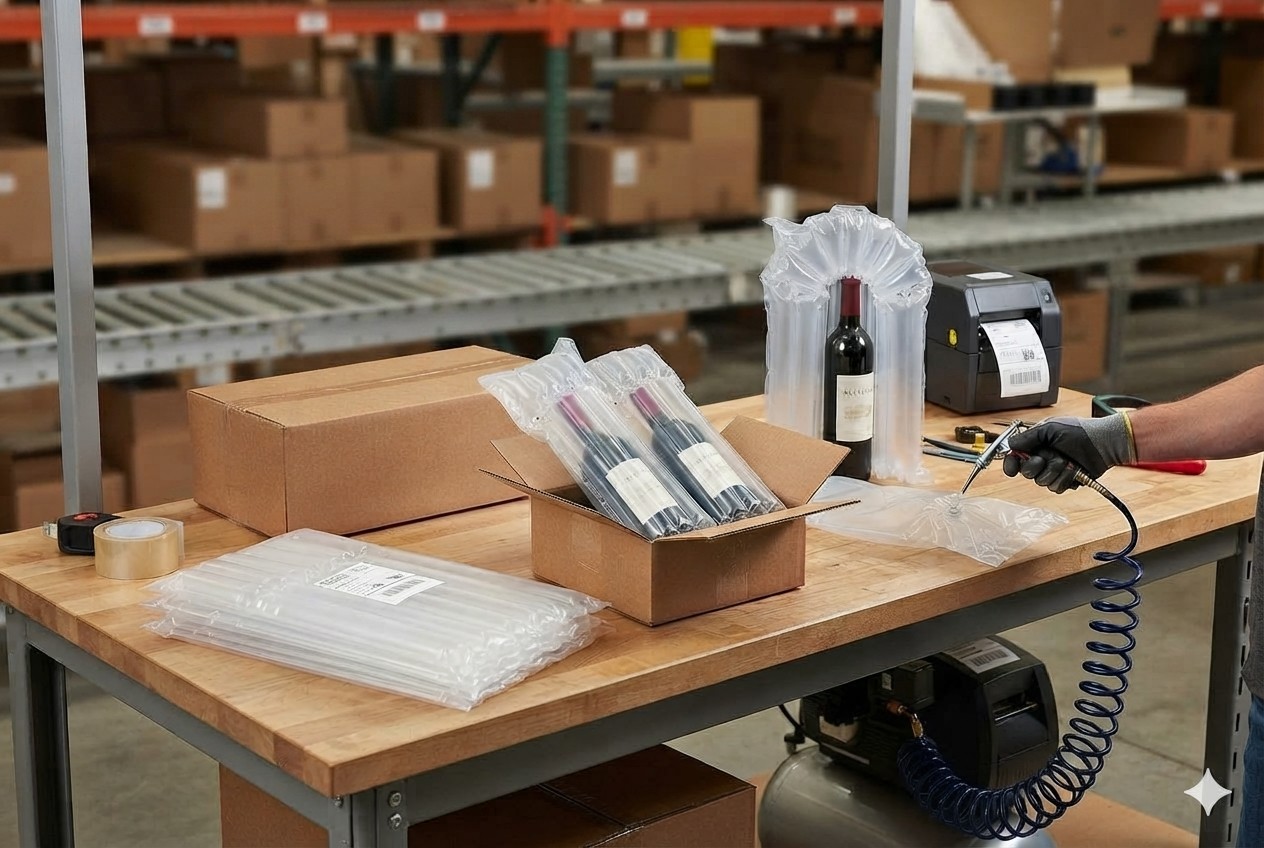

Bags ship flat and are inflated and sealed at the packing station
A single operator can inflate and seal a bag within seconds
High-retention one-way valves stay compatible with standard machines and manual compressors

(5) Testing and Quality Validation

Fitted samples are drop-tested at target carton weight before bulk production
Electronics packaging adds altitude pressure and carrier specific drop tests
Production batches are checked for seal strength film gauge and leak tightness

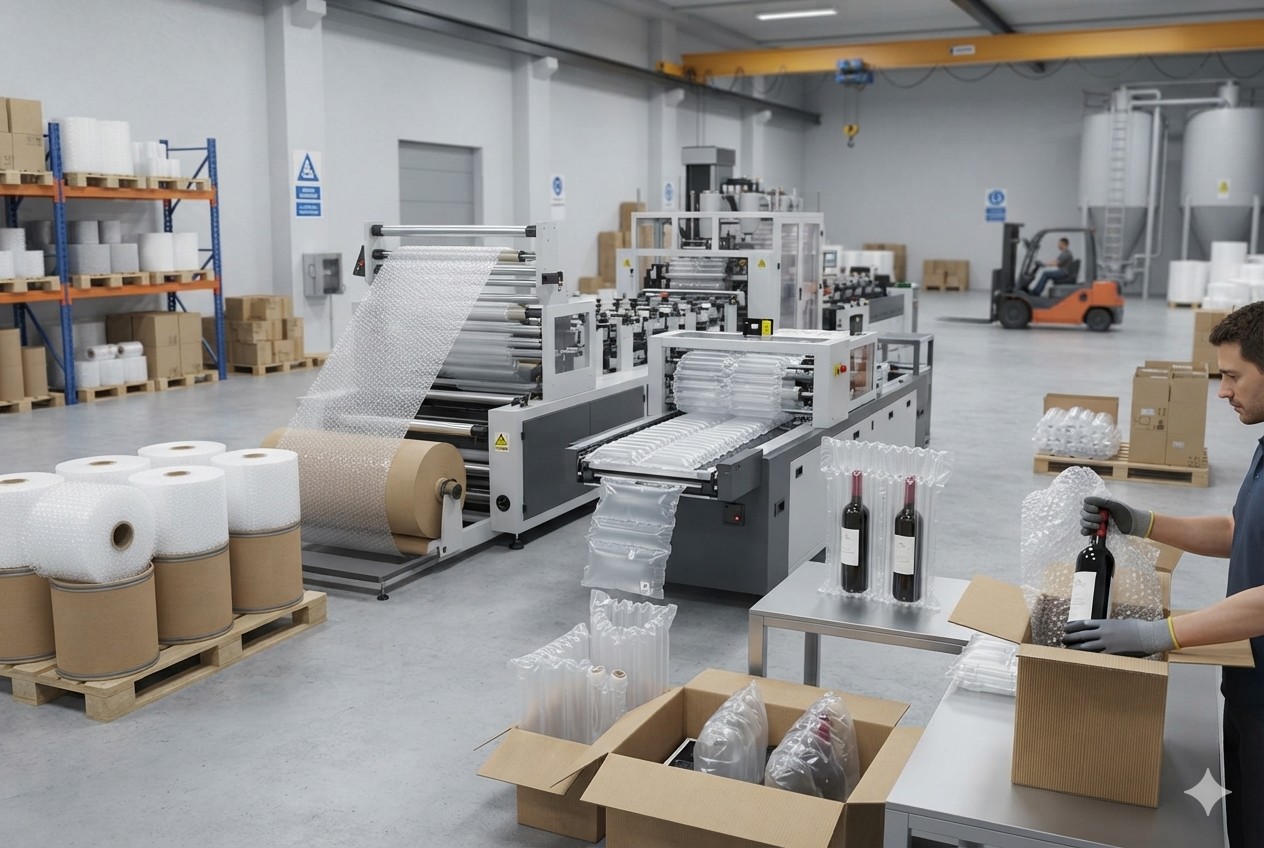

Air Inflatable Bags

2. Basic Specifications

Air inflatable bags are supplied as flat uninflated film rolls and inflated on demand at the packing line. Roll width column width and film thickness are customized to each product's exact dimensions and weight instead of being fixed to one standard size. Standard film gauge runs from 60 to 120 microns for glassware cosmetics and electronics packaging while heavier gauges are reserved for automotive or industrial parts, and roll length and pack-out format are matched to each customer's packing-line intake.

Item	Specification	Remarks
Roll Width	15cm to 55cm	Common width around 40cm for wine bottle and glassware wrap; custom widths available
Column / Chamber Width	Standard 2cm to 3cm; Heavy-duty 4cm to 5cm	Denser columns used for heavier items such as monitors to prevent settling
Film Thickness	Standard 60 to 120 microns	Heavier gauge available for automotive or industrial parts; thickness customizable
Roll Length	Commonly 50m to 300m per roll	Roll length adjustable to packing-line intake and case pack-out format
Pack-out Format	Roll length per case and cases per pallet confirmed at order	Matched to packing-line intake rather than a fixed unit count
Load Capacity	Approximately 60kg to 120kg after inflation	Actual capacity depends on film thickness and column layout

3. Material and Environmental Attributes

The standard film used for air inflatable bags is an adjustable-thickness PA/PE co-extruded laminate, chosen for puncture resistance and reliable seal integrity across the column and chamber structure, with a lower-cost HDPE film available as a secondary option for less demanding applications. All film is BPA-free, and compliance documentation can be provided to match the destination market on request.

Item	Specification	Remarks
Raw Material	PA/PE co-extruded film (primary direction) HDPE film (secondary lower-cost option)	Material choice affects puncture resistance and cost
Recycled Content	Standard product uses virgin material; custom post-consumer recycled (PCR) ratio available	Confirm ratio and certification in advance if required
Eco Attribute	Recyclable film Biodegradable option available on custom order	Biodegradable film cost and lead time confirmed separately
Note: All film is BPA-free and relevant compliance documentation (FDA, LFGB, REACH, RoHS, etc.) can be provided based on the target market.

4. Product Physical Properties

Physical property data below is measured on 80 micron PA/PE co-extruded film, the representative standard thickness used for glassware cosmetics and electronics packaging. Values cover tensile strength at break elongation at break impact resistance and seam strength in both machine and transverse directions, and actual performance can be adjusted per customer requirements through film thickness and column layout changes.

Physical Properties (Factory Lab Test Records) Test data based on 80 micron PA/PE co-extruded film, the representative standard thickness for glassware cosmetics and electronics packaging. Actual performance can be adjusted per customer requirements through film thickness and column layout changes. (Data for reference only; certified test reports available upon request.)
Tensile Strength (N)		Tensile Strength at Break (MPa)		Elongation at Break (%)		Impact (G)	Seam Strength (N)
TD	MD	TD	MD	TD Target	MD Target	Value	Value
10.7	14.5	17.83	22.65	661.83	195.35	65	14.38

5. Materials and Safety Certifications

Item	Details
Key Attributes	BPA-Free/Eco Attribute
Relevant Compliance Certifications	FDA: FEI No. 3004496839 BRC-PM (Huakang BRC-PM Certificate): Certificate No. 0196051
Other Certifications	ISO 13485 — Medical Device Quality Management System ISO 9001 — General Quality Management System BSCI / SMETA / Sedex — Corporate Social Responsibility Audits (labor, environment, etc.)

6. Customization Capabilities

Item	Details
Printing	Logo + design printing supported; gravure 4-color printing process
Size Customization	Custom sizes available on request; MOQ to be discussed separately
Standard MOQ	3 tons
Custom MOQ	3 tons, plate/tooling fees: to be quoted separately
Sample Lead Time	14 business days; sample fee USD $300, refundable upon mass production order

7. Packaging & Logistics

Item	Details
Inner Packaging	Subject to specific packaging requirements
Outer Carton	Subject to specific packaging requirements
Trade Terms	FOB Port of Shanghai or Sihanoukville; T/T 30% deposit, balance against copy of B/L
Production Lead Time	45 days for first order; 30 days for subsequent orders

8. Quality Control - Combination of flowcharts and tables

Stage	Inspection Content
IQC	Plastic pellet strength, transparency, and compliance verification
IPQC	Dedicated QC inspectors stationed on the production floor with ongoing random inspections throughout the production process
OQC	Dimensions, weight, seal integrity, appearance, and packaging completeness
Customer Inspection	On-site inspection by customer or third-party testing agencies supported

9. After-Sales Service

Item	Details
Warranty Period	Quality claims accepted within 6 months of shipment (excluding damage caused by misuse or improper storage)
Claims Process	Provide photos + physical samples within 30 days of receipt; resolution provided within 7 business days
Resolution Options	Replacement / Refund / Discount credit; shipping responsibility negotiated based on circumstances (quality-related returns borne by supplier; non-quality-related returns borne by customer)

10. About Huayue Group

Huayue Group has been deeply rooted in the plastic packaging industry for over 30 years. The company operates the largest plastic packaging production base in Cambodia, with an annual capacity of 120,000 metric tons (equivalent to 10,000 metric tons per month). The company holds multiple international management system certifications (including ISO 9001, BSCI, Sedex, etc.) and produces products that comply with food-contact material standards such as FDA, LFGB, and EU 10/2011.

Over 70% of Huayue's products are exported to European and North American markets, where we have established long-term, stable partnerships with many leading Western retailers. We support full customization in sizes, thicknesses, multi-color printing, and eco-friendly materials (compostable/biodegradable). Backed by 30 years of manufacturing experience, large-scale production capacity, and rigorous quality control, we provide reliable packaging solutions for clients worldwide.
